TPMS RF Sensors

Tags: TPMSBrand: LAUNCH

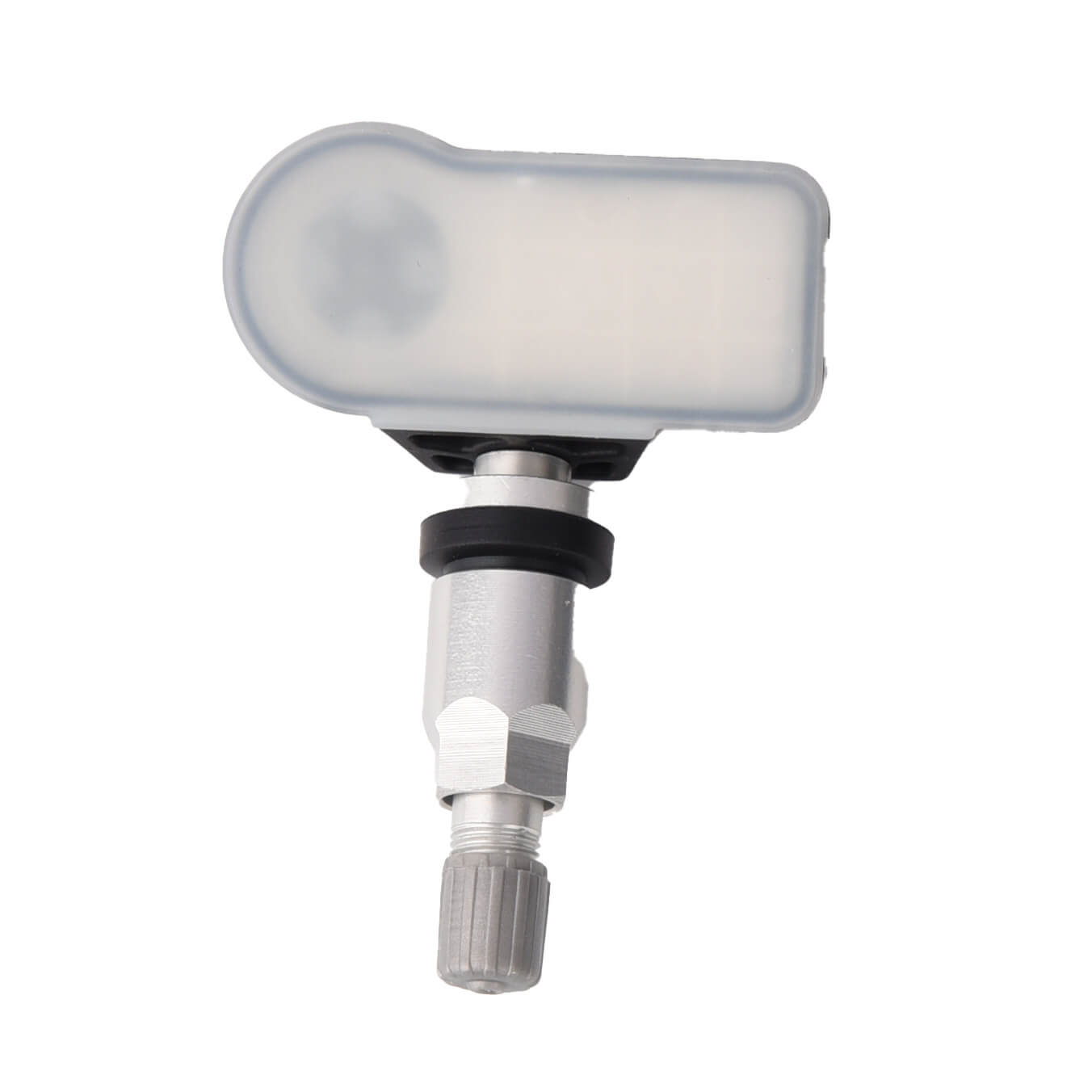

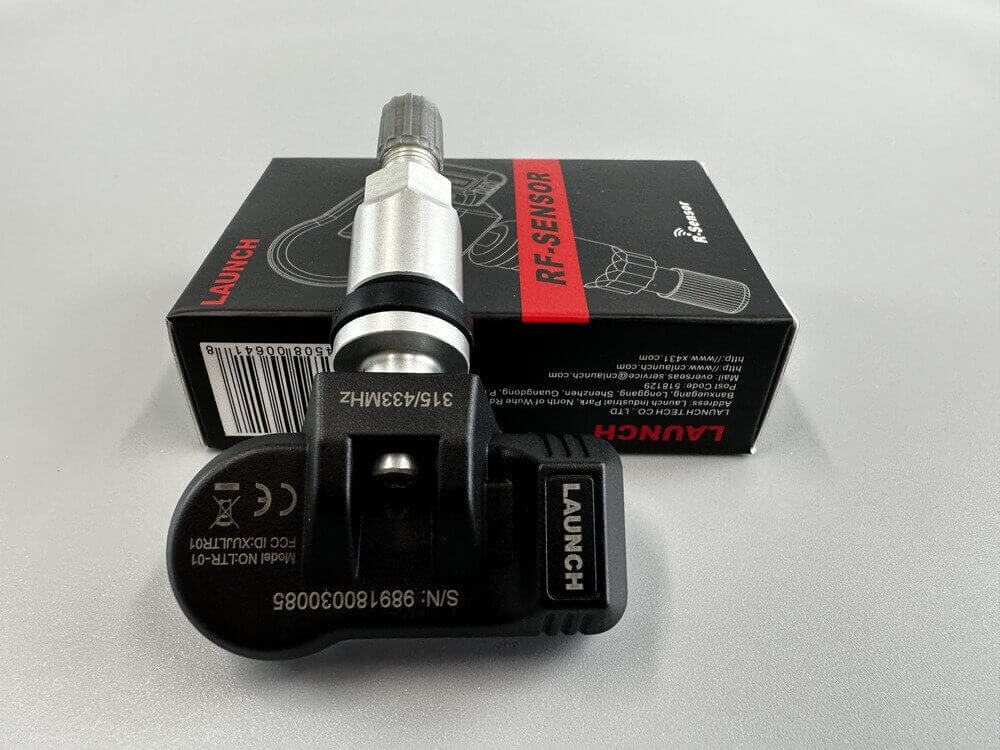

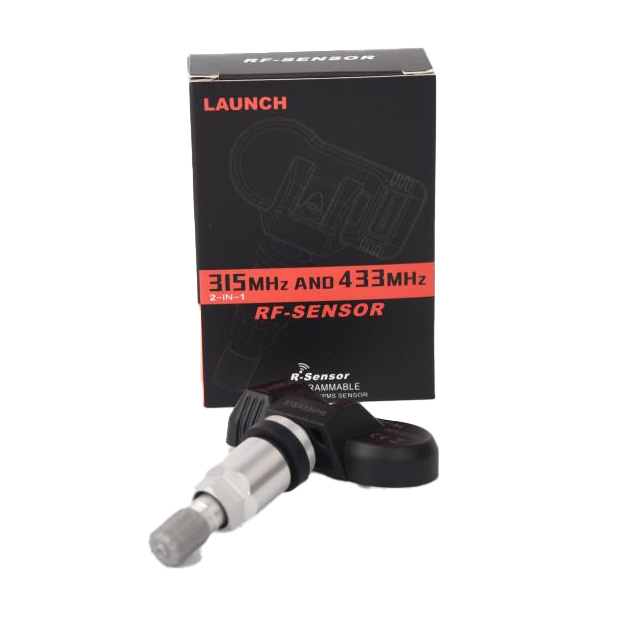

LAUNCH TPMS RF Sensors are offering the best TPMS solutions for any shop performing TPMS repair service.

Overview

Features:

1. Compatible with over 95% of OE sensors in 315MHz and 433MHz.

2. Ulimited wireless reprogramming times, able to replace all OE TPMS sensors.

3. The pressure value can be accurate to 0.1BAR with an international leading automotive-grade chip.

4. Over 5 years battery life.

5. IP67 waterproof casing.



Specifications:

Operating frequency 315MHz/433MHz
Battery voltage 3.0V
RF transmitter power 5~8dBm
Storage Temperature -40°C~125°C
Working Temperature -40°C~125°C
Dimension 50.8*24*17.8 mm
Weight 42g
IP Rating IP67



Compatible with LAUNCH TPMS Module
